Opticis Optical HDMI Extension ModuleM1-2R2H-TR fiber/copper detachable module adopts RJ-45C UTP cable for DDC/HDCP interconnection as well as two duplex LC patch cord fibers to transmit the HDMI data.

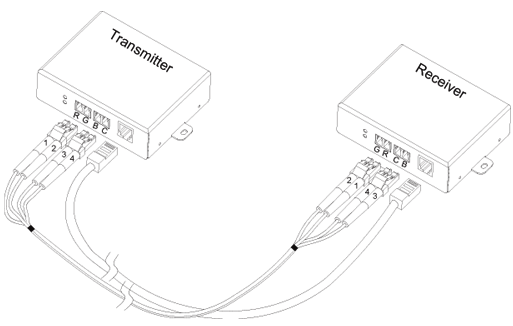

Connection Tip
Click to Enlarge |
 Opticis Detachable Optical HDMI Module (M1-2R2H-TR)
Part Number: M1-2R2H-TR
HDMI optical extender, M1-2R2H-TR is capable of driving up to 36bit color depth HDMI1.3, 1080p at 60Hz and also transmits uncompressed WUXGA (1920x1200) 60Hz signal up to 100m (328feet) over a pair of duplex LC multi-mode fiber. It performs DDC/HDCP interconnection over CAT5.
|
|
| M1-2000 Point to Point hybrid HDMI cable with four multi-mode fibers
for Video/Audio transmission and copper wires for DDC/HDCP and DC
power. |
 Opticis Optical HDMI Extension Cable - 10m/33ft (M1-2000-10)
Part Number: M1-2000-10
Length: 10 meter / 33 feet
Connectors: HDMI 1.3 Male to HDMI 1.3 Male
Point-to-Point HDMI optical cable, M1-2000 has four (4) multi-mode fibers for TMDS transmission and copper wires for DDC/HDCP in a jacket.It supports HDMI1.3 standard up to 1080p with 36bit color depth and also transmits uncompressed WUXGA (1920x1200) 60Hz signal up to 100m (328feet). It supplies +5V DC power either from video sources or external power adapter in the shipping group.
|
|
Opticis Optical HDMI Extension Cable - 20m/65ft (M1-2000-20)
Part Number: M1-2000-20
Length: 20 meter / 65 feet
Connectors: HDMI 1.3 Male to HDMI 1.3 Male
Point-to-Point HDMI optical cable, M1-2000 has four (4) multi-mode fibers for TMDS transmission and copper wires for DDC/HDCP in a jacket.It supports HDMI1.3 standard up to 1080p with 36bit color depth and also transmits uncompressed WUXGA (1920x1200) 60Hz signal up to 100m (328feet). It supplies +5V DC power either from video sources or external power adapter in the shipping group.
|
|
Opticis Optical HDMI Extension Cable - 30m/98ft (M1-2000-30)
Part Number: M1-2000-30
Length: 30 meter / 98 feet
Connectors: HDMI Male to HDMI Male
Point-to-Point HDMI optical cable, M1-2000 has four (4) multi-mode fibers for TMDS transmission and copper wires for DDC/HDCP in a jacket.It supports HDMI1.3 standard up to 1080p with 36bit color depth and also transmits uncompressed WUXGA (1920x1200) 60Hz signal up to 100m (328feet). It supplies +5V DC power either from video sources or external power adapter in the shipping group.
|
|
Opticis Optical HDMI Extension Cable - 50m/164ft (M1-2000-50)
Part Number: M1-2000-50
Length: 50 meter / 164 feet
Point-to-Point HDMI optical cable, M1-2000 has four (4) multi-mode fibers for TMDS transmission and copper wires for DDC/HDCP in a jacket.It supports HDMI1.3 standard up to 1080p with 36bit color depth and also transmits uncompressed WUXGA (1920x1200) 60Hz signal up to 100m (328feet). It supplies +5V DC power either from video sources or external power adapter in the shipping group.
|
|
Opticis Optical HDMI Extension Cable - 70m/229ft (M1-2000-70)
Part Number: M1-2000-10
Length: 70 meter / 229 feet
Point-to-Point HDMI optical cable, M1-2000 has four (4) multi-mode fibers for TMDS transmission and copper wires for DDC/HDCP in a jacket.It supports HDMI1.3 standard up to 1080p with 36bit color depth and also transmits uncompressed WUXGA (1920x1200) 60Hz signal up to 100m (328feet). It supplies +5V DC power either from video sources or external power adapter in the shipping group.
|
|
Opticis Optical HDMI Extension Cable - 100m/328ft (M1-2000-100)
Part Number: M1-2000-100
Length: 100 meter / 328 feet
Point-to-Point HDMI optical cable, M1-2000 has four (4) multi-mode fibers for TMDS transmission and copper wires for DDC/HDCP in a jacket.It supports HDMI1.3 standard up to 1080p with 36bit color depth and also transmits uncompressed WUXGA (1920x1200) 60Hz signal up to 100m (328feet). It supplies +5V DC power either from video sources or external power adapter in the shipping group.
|
|
